Product Overview and Key Features

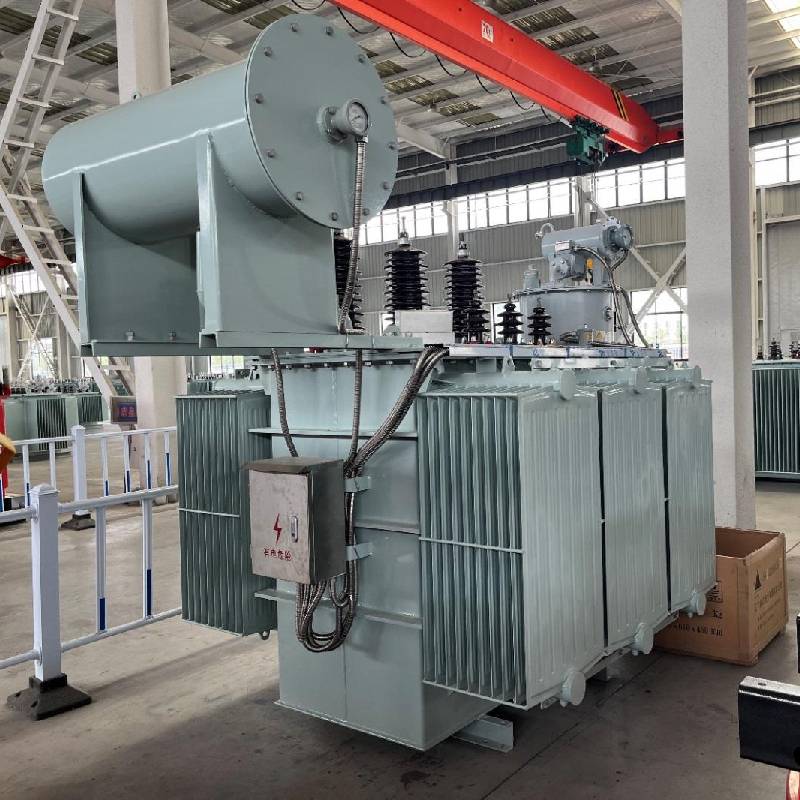

The bardeen 66kV oil‑immersed transformer is a medium‑high voltage solution optimized for stepping voltage up or down within transmission and distribution networks. This oil‑immersed transformer features an optimized core and winding design that minimizes losses while maximizing thermal performance. The robust oil‑filled tank provides long‑term dielectric strength and efficient heat dissipation, enabling continuous operation under variable load conditions typical of grid modernization programs and renewable energy storage farms. As a 66kV transformer, it supports a wide range of system configurations and can be tailored to specific installation requirements.

Design and Construction
Constructed using high‑grade electrical steel core and precision‑wound copper or aluminum conductors, the bardeen 66kV oil‑immersed transformer emphasizes low‑noise, low‑loss performance. The oil‑immersed transformer uses advanced mineral or ester‑based insulating fluids selected for superior dielectric properties and enhanced fire safety. Mechanical design includes reinforced tanks, conservator systems, breather units, pressure‑relief devices, and multi‑tap changers where required. These design elements ensure mechanical resilience, electrical safety, and prolonged service life essential for utility‑scale grid modernization projects and renewable energy storage installations.

Thermal Management and Cooling
‑ Convection Efficiency: Efficient thermal management is a core advantage of the bardeen 66kV transformer.
‑ Insulation Protection: The oil‑immersed transformer leverages natural and forced oil circulation techniques to maintain optimal operating temperatures, reduce aging of insulation, and prevent thermal hotspots.
‑ Enhanced Heat Transfer: Enhanced cooling pathways and strategic radiator design further improve thermal exchange, making the 66kV transformer suitable for demanding environments and continuous‑duty cycles associated with renewable energy storage systems and modernized grid assets.

Electrical Performance and Reliability
‑ Low‑Loss Metrics: Electrical performance metrics for the 66kV transformer prioritize low no‑load and load losses, high short‑circuit impedance accuracy, and tight regulation.
‑ Clean Power Delivery: The oil‑immersed transformer is engineered to offer superior voltage regulation, low noise levels, and minimal harmonic distortion, ensuring compatibility with sensitive loads and inverter‑based renewable energy storage systems.
‑ Stringent Verification: Rigorous factory testing—including routine, type, and lightning impulse testing—guarantees that each 66kV transformer meets international standards and client‑specific requirements.
