SKH6-12SF6 fully insulated ring network switchgear

SKH6-12 is a compact SF6 gas-insulated ring network switchgear designed for 12kV medium-voltage power distribution systems. Adopting full-insulation and full-sealed stainless steel gas tank structure, all live components are completely enclosed and insulated by SF6 gas. Equipped with shielded insulated cable connectors, the whole cabinet features miniaturized size, high integration and excellent environmental adaptability. It is widely applied for ring-network power supply, terminal power distribution and grid connection in urban power grids, residential districts, commercial complexes, industrial parks and municipal engineering projects.

Customize from Our Standard Product Line

If you spot a near-match in our catalog, we can quickly modify our standard transformers for your application. Adjustments cover capacity, voltage class, cooling type and installation structure.

Build per Your Technical Documents

Send us your specifications or drawings. Our engineering team reviews the design, validates all key parameters with you, and manufactures strictly in accordance with international standards.

Full Custom Design from Concept to Completion

Without formal detailed specs? Share your ideas and functional requirements. We partner with you to develop fully customized transformer solutions, from electrical design and structural layout through to insulation system.

Overview
Product Overview
Application
FAQ
Transportation Services & Process

Overview

Compliance Standards
● International Standards:Compliant with IEC 62271‑200, IEC 62271‑102, IEC 60420 and IEC 62271‑1 general specifications for high‑voltage switchgear and gas‑insulated ring main units.
● National Standards:Strictly designed, manufactured and tested in accordance with GB 3906 and GB/T 11022 for high‑voltage metal‑enclosed switchgear and universal technical requirements.
● Quality Standard:Meets global dielectric withstand criteria, industrial safety specifications and international quality control standards, supporting stable operation for various domestic and overseas power grid projects

Operating Conditions
● Installation Environment:Indoor fixed installation, adaptable to conventional distribution rooms and compact power supply stations.
● Ambient Temperature:-10°C ～ +40°C, free from drastic and irregular temperature fluctuations.
● Humidity Condition:Maximum relative humidity ≤95%, no condensation, frost or moisture accumulation on equipment surface.
● Altitude Range:Standard applicable altitude ≤1000m; customized insulation solution is available for high‑altitude areas.
● Site Environment:Free from explosive dust, corrosive gas, severe vibration, strong electromagnetic interference and small animal intrusion

Product Overview

Product Features & Technical Advantages

Product Features and Design

The SKH6-12SF6 switchgear is a versatile ring main unit built for compactness and durability. The switchgear architecture uses sulfur hexafluoride gas insulation combined with sealed metal-enclosed compartments to ensure insulation integrity and operational safety, while bardeen also provides SF6-free alternatives for environmentally sensitive applications

Applications and Smart Grid Integration

The SKH6-12SF6 switchgear is ideal for urban distribution networks and ring main unit installations where space and reliability are critical. The SKH6-12SF6 switchgear is widely applied in commercial buildings, industrial facilities, renewable energy hubs, and municipal distribution substations requiring smart grid integration

Innovation and Technical Advantages

Gas Monitoring & Eco Options: Advanced sealing techniques and gas monitoring extend maintenance intervals, while bardeen's SF6-free alternatives ensure full environmental compliance
Enclosed Busbars: Metal-clad compartments with fully enclosed busbar systems limit exposure and enhance electromagnetic compatibility across every ring main unit bay
Smart Grid Integration Readiness: Equipped with intelligent secondary units, remote communication modules, and condition-monitoring sensors to support complete smart grid integration and predictive maintenance for every SKH6-12SF6 switchgear deployment
Vacuum Interruption: Incorporates vacuum interrupter technology in switching elements to combine superior breaking performance with reliable ring main unit operation
Green Architecture: Bardeen’s commitment to sustainability allows clients to select SF6-free alternatives without sacrificing the compact footprint of the SKH6-12SF6 switchgear

Safety and Environmental Considerations

Safety is central to the SKH6-12SF6 switchgear design. Compartments are pressure-tested and fitted with safety interlocks to prevent inadvertent access. The ring main unit layout isolates live parts, protecting personnel during routine inspections. Bardeen implements responsible gas management practices during SKH6-12SF6 switchgear production while actively promoting SF6-free alternatives to minimize environmental footprint

Modern utilities prioritizing smart grid integration can integrate the SKH6-12SF6 switchgear seamlessly into automation networks. Choosing this ring main unit guarantees long-term performance, while optional SF6-free alternatives advance sustainable infrastructure goals. With proven smart grid integration capabilities, the SKH6-12SF6 switchgear remains a leading ring main unit selection, providing eco-conscious operators with market-leading SF6-free alternatives and seamless smart grid integration options

Core Merits
● Full Insulation & Full Sealing:All high‑voltage live parts are sealed in a welded stainless steel gas tank with SF6 insulation, completely isolated from external environment to avoid flashover and electric leakage risks
● Ultra‑high Environmental Adaptability: Unaffected by humidity, dust, salt fog and pollution, it can operate stably in harsh working conditions with strong anti‑interference capability
● Maintenance‑Free & High Reliability: Hermetically sealed structure ensures long‑term stable gas tightness, realizing lifelong maintenance‑free operation and greatly reducing operation and maintenance costs
● Compact & Flexible Layout: Miniaturized integrated design saves installation space, supports flexible combination and extension, and perfectly adapts to diversified ring‑network and terminal power supply modes

Application

Application Scenarios

Urban distribution networks & municipal ring‑main power supply projects

Commercial buildings, shopping malls and public utility power distribution rooms

Industrial facilities and industrial park compact power supply stations

Renewable energy hubs for solar and wind power plant switch‑rooms

Space‑limited sites requiring fully‑sealed gas‑insulated ring main units

FAQ

Frequently Asked Questions

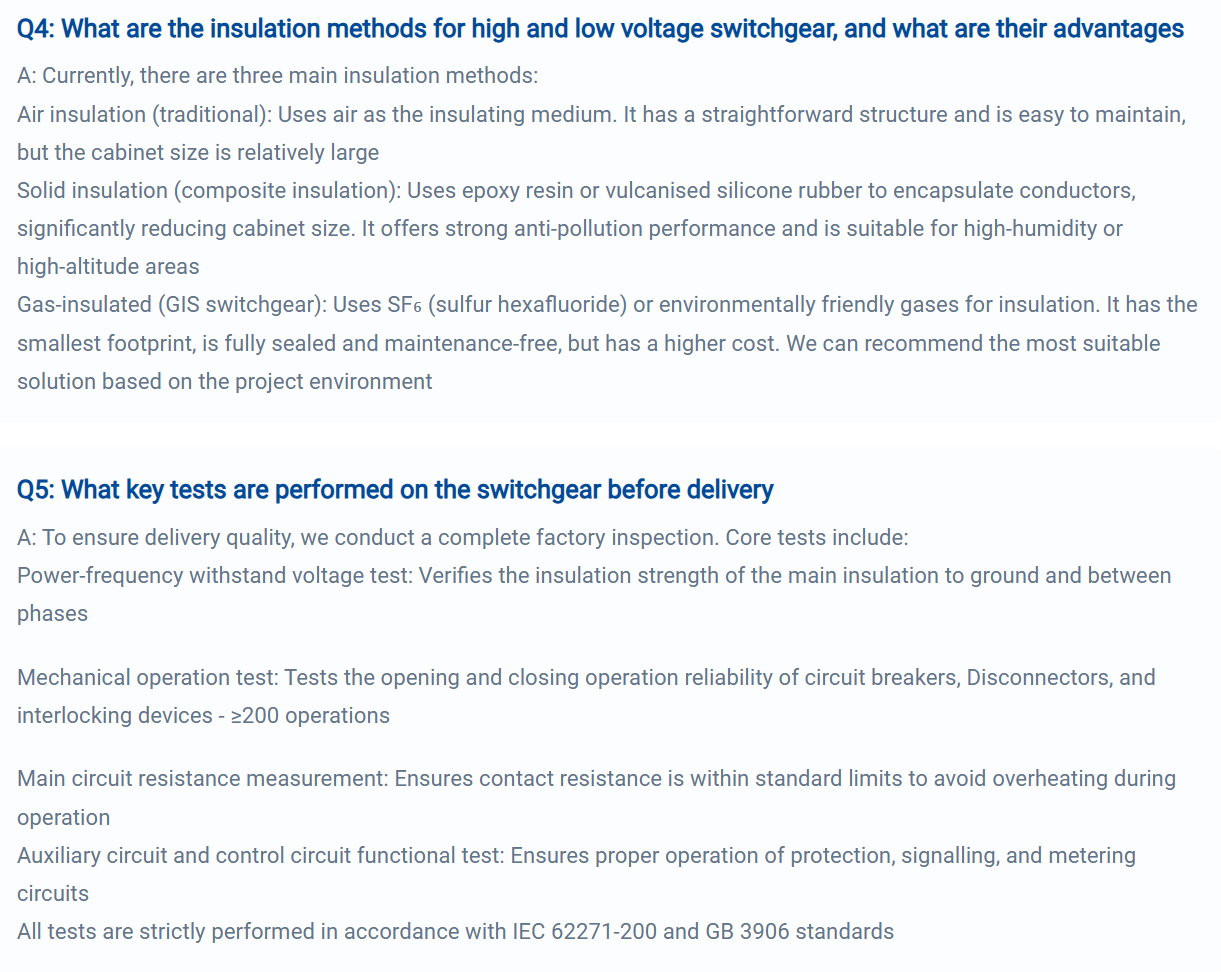

Q1: What is a metal‑clad withdrawable switchgear? What are its main featuresA: A metal‑clad withdrawable switchgear (such as the KYN series) is a fully enclosed, fully compartmentalised power distribution device. Its distinctive feature is that the busbar compartment, circuit breaker compartment, cable compartment, and instrument compartment are independently separated from each other, with each compartment using metal partitions that are grounded and shielded. The core advantages are: the withdrawable circuit breaker trolley can be flexibly pulled out, facilitating online inspection, maintenance, or rapid replacement, which greatly reduces outage time

Q2: What is the "five‑prevention interlocking" function of a switchgear, and why is it importantA: The "five‑prevention interlocking" is a mandatory mechanical or electrical interlocking device that ensures operator safety and reliable equipment operation. It includes:
Preventing incorrect opening or closing of the circuit breaker;
Preventing opening or closing of the Disconnector (ie., the trolley) under load;
Preventing the closing of the earthing switch when the equipment is live;
Preventing the closing of the circuit breaker when the earthing switch is closed (ie., with an earth connection);
Preventing inadvertent entry into live compartments
This design physically eliminates the possibility of human mis-operation and is a core requirement of electrical safety regulations

Q3: How do I choose between fixed‑type and withdrawable (trolley‑type) switchgear based on project requirementsA: The choice mainly depends on the requirements for power supply reliability and maintenance efficiency
Withdrawable type (eg., KYN series): Recommended for critical loads, applications requiring frequent operation, or scenarios demanding rapid fault recovery (such as large factories and data centres). The circuit breaker trolley can be kept as spare inventory; in case of a fault, it can be directly replaced as a whole, restoring power very quickly
Fixed type (eg., GGD, XGN series): Suitable for applications with stable loads and less stringent outage time requirements (such as general building power distribution). They have a simpler structure and relatively lower cost, but maintenance typically requires an overall busbar outage
